OBD2Tuner.com Launch X431 Icarscan obdii code scanner For Android/iOS Lanuch Icarscan VCI Quick Start Guide:
Precautions on operation
Before using this product, please read the following information carefully.
1.The illustrations herein are for reference only and are subject to change based on the smart mobile
terminal you are using and / or software updates.
2. Always perform automotive testing in a safe environment.
3. The instrument is a precision electronic instrument. Pay more attention when in use, NEVER have it
dashed.
4. Do not connect or disconnect the VCI connector while the ignition is on or the engine is running.
5. Do not keep the VCI connector plugged into your vehicle overnight, be sure to always remove
connector once testing and/or diagnosis is complete. Failure to do so may result in drained or
weakened battery.
6. Do not drive the vehicle and operate the VCI connector at the same time. Any distraction may cause
an accident.
7. To avoid damaging the VCI connector or generating false data, please make sure the vehicle
battery is fully charged and the connection to the vehicle DLC (Data Link Connector) is clear and
secure.
8. Keep the VCI connector dry, clean, free from oil, water or grease. Use a mild detergent on a clean
cloth to clear the outside of the connector as necessary.
9. Attention: The purchasing agreement for the software is for ONE year subscription .

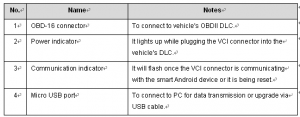

1. Knowledge of iCarScan
Launch ICarScan
Launch ICarScan
If it is the first time you have used the product, you have to experience the following procedure to
diagnose a vehicle.
Launch ICarScan
If it is the first time you have used the product, you have to experience the following procedure to
diagnose a vehicle.
2. Download & Install the iCarScan App
The iCarScan app is free to download.
1.Turn on your Android smart terminal.
2.Go into Android Play Store (Google play).
Google play can be found in the following URL: https://play.google.com/store .
3.Input the keyword “ICARSCAN” in the search bar.
4.Once found, tap on “FREE” to download and install it.
5.After the installation is complete, a iCarScan icon will be created on the HOME screen.
Launch ICarScan
3. Getting Started
It is necessary to have a basic knowledge of the iCarScan App.
Launch ICarScan
4. Initial Use
A. User Registration & Activate Connector
1.Tap on “Login” located on the upper right corner of main menu screen, a screen similar to the
following will appear:
Launch ICarScan
2. For new users, tap on “Register” to proceed to next step. For existing users, input your Username
and Password directly.
3. Input the required information, and then tap on “Register and Login”, a dialog box similar to the
following will pop up.
Launch ICarScan
4.Tap on “Register Connector”
Launch ICarScan
5.Fill in the Serial Number and Verification Code, which can be found in the password envelope in the
package
Launch ICarScan
To register the connector later and exit, tap on “No Connector”. In this case, you can also activate it
by tapping on “三” — > “Mine” — > “Activate Device”.
6.Tap on “Confirm” to activate your connector and return to the main menu screen.
B. Download Free Software
By default max. 5 software (excluding DEMO, EOBD and 3 Reset series software) can be selected for
free download.
To purchase other software, you need to pay extra fees. For details on purchasing diagnostic software,
please refer to “5. Purchase & Download Diagnostic Software”.
Attention: The purchasing agreement for the software is for ONE year subscription.
Once it expires, only the older version becomes available and in this case you may renew your subscription to
enjoy the latest version and more functions.
Launch ICarScan
Launch ICarScan
1.Tap on certain car model logo, a window listing all available vehicle software will appear.
2. Check the box to select the desired vehicle software, and tap on “>” to confirm.
3. Tap on “>” , to start downloading. Once downloading is complete, tap “√” to start downloading. Once downloading is complete, tap
5. Purchase & Download Diagnostic Software
A. Purchase Diagnostic Software
The icon “↓” located on the lower right corner of the diagnostic software logo means that the diagnostic
software has not been purchased and downloaded.
Launch ICarScan
Launch ICarScan
Launch ICarScan
1.Tap on the desired vehicle make logo to enter software information interface. Here we take GM as
an example.
2. Tap on “Purchase Now” to go into order confirmation page.
3. Double check if your order information is correct and then tap on “>” to enter the payment method
page.
4.Select one of payment types, then follow the on-screen instructions to complete the transaction.
Launch ICarScan
Launch ICarScan
B. Download Diagnostic Software
Only after payment has been made successful for diagnostic software or software package can the
software or software package be downloaded.
1.Tap on GM logo, a screen similar to the following appears:
2. Tap on “Download Software”. Tap on “>” to start downloading
3. Tap on to start downloading.
Launch ICarScan
4. Once downloading finishes, tap on “√” to return to the main menu interface and the icon “↓” of the GM logo disappears.
Launch ICarScan
6. Vehicle Connection
1. Turn the ignition switch off;
2. Locate the vehicle’s DLC socket: It is usually located 12 inches from the center of the instrument
panel, under or around the driver’s side for most vehicles. If it is not located under dashboard, a
label should be there telling location. For some Asian and European vehicles, the DLC is located
behind the ashtray and the ashtray must be removed to access the connector.
3. Plug the VCI connector into DLC socket;
4. Turn the key to the ON position, and then the power indicator of the connector will light up.
Now you can start diagnosing.
Note: Remember to remove the connector once testing and/or diagnosis is complete.
7. Start to Diagnose
Launch ICarScan
